Most of what goes by the name of Artificial Intelligence (AI) today is actually based on training and deploying Deep Learning (DL) models. Despite their impressive achievements in fields as diverse as image classification, language translation, complex games (such as Go and chess), speech recognition, and self-driving vehicles, DL models are inherently opaque and unable to explain their predictions, decisions, and actions.
This is not a critical issue for several applications (such as movie recommendation systems or news/social media feed customization, for example) where the end user will evaluate the quality of the AI based on the results it produces, make occasional adjustments to help it improve future results (e.g., by rating additional movies), or move away from that product/app. There is rarely a need to require an explanation for the AI’s decisions when there is very little at stake.
However, for high-stakes situations and mission-critical applications – such as self-driving vehicles, criminal justice decisions, financial systems, and healthcare applications – explainability might be considered crucial. It is not enough to have an AI provide a solution, decision, or diagnosis; it is often necessary (and in some cases, absolutely essential) to explain the process behind such decisions. The emerging field of XAI (eXplainable Artificial Intelligence) addresses this need and offers several methods to provide some level of explanation to deep learning AI solutions.
In this blog post, we focus primarily on the human factors of XAI: What needs to be explained and how can this be communicated to the (human) user of an AI solution?

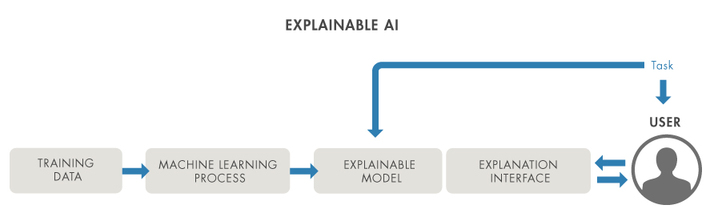

Fig 1 – Human factors of XAI: an explainable model requires a suitable interface
Recognizing that explainability is desirable when deploying AI solutions in some areas of human activity is only the beginning. In order to understand the why and how behind an AI model’s decisions and get a better insight into its successes and failures, an explainable model must explain itself to a human user through some type of explanation interface (Figure 1). Ideally such interface should be rich, interactive, intuitive, and appropriate for the user and task.
In the field of image classification, a common interface for showing the results of XAI techniques consists of overlaying the “explanation” (usually in the form of a heat map or saliency map) on top of the image. This can be helpful in determining which areas of the image the model deemed to be most relevant for its decision-making process. It can also assist in diagnosing potential blunders that the DL model might be making, producing results that are seemingly correct but reveal that the model was “looking at the wrong places.” Classical examples include the husky vs. wolf image classification algorithm that was, in fact, a “snow detector”, and an image classification solution where the tench, a large fish species, is often identified by human fingers.
In radiology, there is a well-known case where models used to detect pneumonia in chest X-rays had learned to detect a metal token that radiology technicians place on the patient in the corner of the image field of view at the time they capture the image, which in turn identiﬁed the source hospital, causing the models to perform well in images from the hospital they were trained on, and poorly in images from other hospitals with diﬀerent markers.
XAI is often presented as an “all-or-nothing” addition to regular AI, leading to potentially false dichotomies – such as the trade-offs between accuracy and explainability (which suggests that in order to get more of one you must sacrifice the other, which is not universally true) – or vague questions based on abstract scenarios, such as “Would you pay more for AI that explains itself (and performs at the same level as the baseline solution)?”

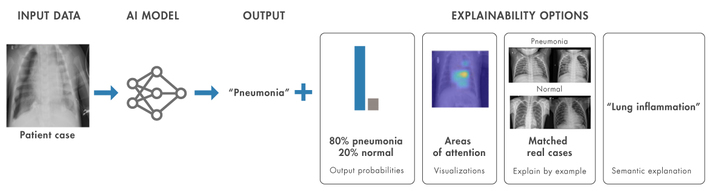

Fig 2 – XAI as a gradual approach: in addition to the model’s prediction, different types of supporting information can be added to explain the decision.
We choose to see explainability as a gradual process instead (Figure 2), where an AI system that predicts a medical condition from a patient’s chest x-ray might use gradually increasing degrees of explainability: (1) no explainability information, just the outcome/prediction; (2) adding output probabilities for most likely predictions, giving a measure of confidence associated with them; (3) adding visual saliency information describing areas of the image driving the prediction; (4) combining predictions with results from a medical case retrieval (MCR) system and indicating matched real cases that could have influenced the prediction; and (5) adding computer-generated semantic explanation.
There is no universally accepted taxonomy of XAI techniques. In this blog post we use the categorization of the field adopted by the authors of a recent survey paper on the topic, which breaks down the field into scope, methodology and usage, as follows:
Some post-hoc XAI algorithms have become popular in recent years, among them Grad-CAM (Gradient-weighted Class Activation Mapping) and LIME (Local Interpretable Model-agnostic Explanation). Grad-CAM is gradient-based, has local scope, and can be used for computer vision tasks. LIME is perturbation-based, has both local and global scope, and can be used with images, text, or tabular data.
Given a chest x-ray (CXR), our solution should classify it into Posteroanterior (PA) or Lateral (L) view.
The dataset (PadChest) can be downloaded from https://bimcv.cipf.es/bimcv-projects/padchest/ .
Both methods (gradCAM and imageLIME) are available as part of the MATLAB Deep Learning toolbox and require a single line of code to be applied to results of predictions made by a deep neural network (plus a few lines of code to display the results as a colormap overlaid on the actual images).
Figures 3 and 4 show representative results. The Grad-CAM results (Fig 3) suggest that the network is using information from the borders and corners of the image to make a classification decision. The LIME results (Fig 4) tell a rather different story. In both cases, we are left wondering: to what extent did either method help explain the model’s decision?
Fig 3 – Example of result: Grad-CAM for CXR classification task.
Fig 4 – Example of result: image LIME for CXR classification task.
Here is another example where we applied Grad-CAM and image LIME to results of a binary skin lesion classifier.
Figures 5 and 6 show representative results. They are organized in a confusion matrix-like fashion (with one case each of true positive (TP), true negative (TN), false positive (FP), and false negative (FN)). They reveal fascinating aspects (and limitations) of these post-hoc techniques:
Deep Learning models are opaque and, consequently, have been deemed “inadequate” for several applications (since usually they can make predictions without explaining how they arrived at the result, or which factors had greater impact). Explainable AI (XAI) techniques are possible ways to inspire trust in an AI solution.
In this blog post we have used MATLAB to show how post-hoc explanation techniques can be used to show which parts of an image were deemed most important for medical image classification tasks. These techniques might be useful beyond the explanation of correct decisions, since they also help us identify blunders, i.e., cases where the model learned the wrong aspects of the images.
XAI is an active research area, and new techniques and paradigms are likely to emerge in the near future. If you’re interested in learning more about XAI and related issues, see the recommended resources below.
