Model Experiments, Tracking and Registration using MLflow on Databricks

  • Dash70

9191201291

Learn how StreamSets, a modern data integration platform for DataOps, can help expedite operations at some of the most crucial stages of Machine Learning Lifecycle and MLOps.

Data Acquisition And Preparation

Machine learning models are only as good as the quality of data and the size of datasets used to train the models. Data has shown that data scientists spend around 80% of their time on preparing and managing data for analysis and 57% of the data scientists regard cleaning and organizing data as the least enjoyable part of their work. This further validates the idea of  MLOps and the need for collaboration between data scientists and data engineers.

During this crucial phase of data acquisition and preparation, data scientists identify what types of (trusted) datasets are needed to train models and work closely with data engineers to acquire data from viable data sources.

How Can StreamSets Help

Some of the common data sources for acquiring datasets for data science projects include: Amazon S3, Microsoft Azure Blob Storage, Google Cloud Storage, Kafka, Hadoop, on-prem and cloud data warehouses. StreamSets DataOps Platform provides easy-to-use GUI for building smart data pipelines for streaming and batch dataflows for fast data ingestion of large amounts of data from distributed systems€“including all of the common sources mentioned above.

Another aspect of the data ingestion process is the storage€“in some cases, companies may already have a data lake or a data warehouse and in some cases they may need to build one. StreamSets DataOps Platform is capable of connecting to existing data lakes and data warehouses (on-prem or in the cloud) and also has built-in capabilities of creating new ones.

As part of building these data pipelines, data engineers can also perform some of the key transformations needed by data scientists. Some of the common transformations required during data preparation include: data type conversion for fields/columns/features, renaming fields/columns/features, joining datasets, merging datasets, repartitioning, dataset data format conversion (for example, JSON to Parquet for efficient downstream analysis in Apache Spark), etc. All of these transformations and many more are readily supported by StreamSets DataOps Platform.

Imp Note: Extensive and thorough feature engineering tasks and in depth analysis of features, their correlation with the target variable, feature importances, etc. is best suited for and better performed on interactive tools, such as, Databricks Notebook, Jupyter, RStudio, and ML platforms.

Model Experiments, Tracking, And Registration

Experimentation is a big precursor to model development where data scientists take sufficient subsets of trusted datasets and create several models in a rapid, iterative manner.

Without proper industry standards, data scientists have to rely on manual tracking of models, inputs, hyperparameters, outputs and any other such artifacts throughout the model experimentation and development process. This results in very long model deployment/release cycles, which effectively prevents organizations from adapting to dynamic changes, gaining competitive advantage, and in some cases staying in compliance with changing governance and regulations.

How Can StreamSets Help

Using StreamSets Transformer, a Spark ETL engine, it€™s easy to integrate with MLflow using its PySpark or Scala APIs.

  • This MLflow integration allows for tracking and versioning of model training code, data, config, hyperparameters as well as register and manage models in a central repository in MLflow from Transformer. This is critical for retraining models and/or for reproducing experiments.
  • When using MLflow on Databricks, this creates a powerful and seamless solution because Transformer can run on Databricks clusters and Databricks comes bundled with MLflow server.

End-to-end Use Case

Let€™s walk through an end-to-end scenario where we€™ll ingest data from a cloud object storage (for example, Amazon S3), perform necessary transformations, and train a regression model. The dataset consists of a set of houses with features like number of bedrooms, bathrooms, square footage, etc. and the price it was sold at.

Apart from tracking, versioning, and registering models in MLflow withevery run we€™d also like the pipeline to automatically promote models from €œstaging€ to €œproduction€ provided they meet a certain set of conditions. For example, if r2 >= ${r2Threshold} or rmse <= ${rmseThreshold}, then the model needs to be promoted to €œProduction€ on MLflow server on Databricks. This can be one of the requirements and part of the specification given by the data scientists to the data engineering team responsible for deploying the models.

Pipeline Overview

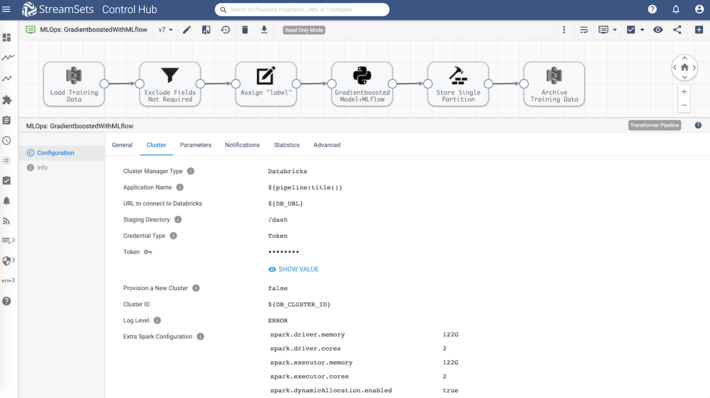

The StreamSets Transformer pipeline shown below is designed to load training data from Amazon S3, perform transformations like remove row id, rename target column €œmdev€ to €œlabel€ (which is required by SparkMLlib), train Gradient Boosted Regression model using PySpark processor and archive the training data in Amazon S3.

More importantly, the pipeline also integrates with MLflow on Databricks to track and version model training code including hyperparameters, model evaluation metrics, and register models.

9191201489

Model Training And Experimentation

The code snippet of interest in PySpark Processor €” this is part of the pipeline that trains the Gradient Boosted Regression model and tracks everything in MLflow including promoting models from €œstaging€ to €œproduction€ based on certain conditions.


Model Tracking in MLflow On Databricks

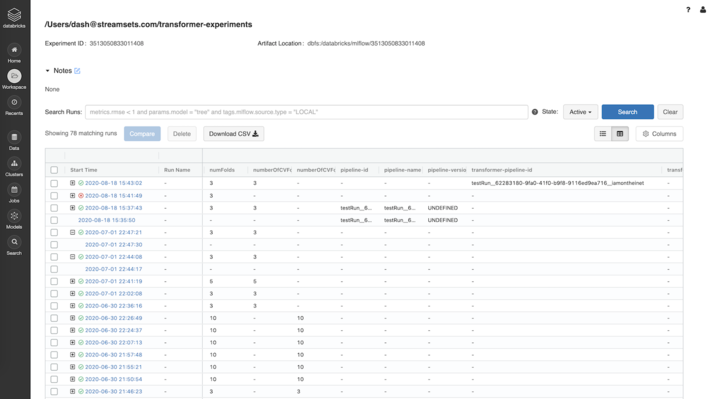

Here are the model training runs from the Transformer pipeline tracked in MLflow.

9191208879

Model Versioning in MLflow On Databricks

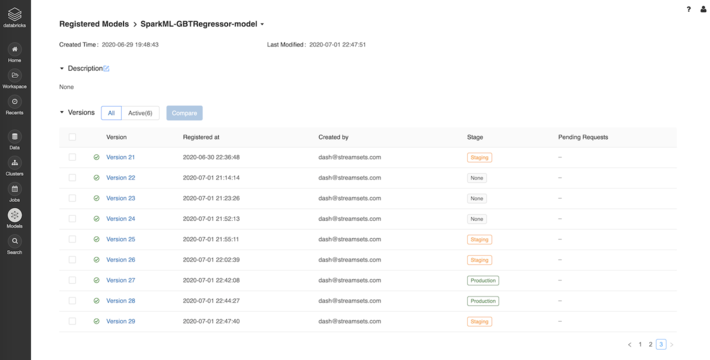

Here are the model versions registered from the Transformer pipeline.

9191209290

Model Comparison in MLflow On Databricks

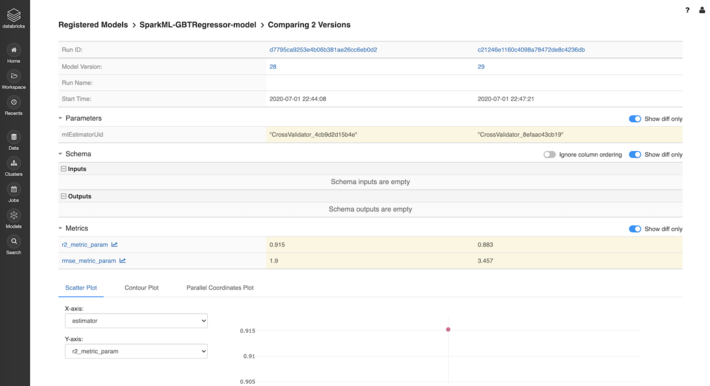

Here€™s a side-by-side comparison of two selected models created from the Transformer pipeline.

9191209485

Model Retraining

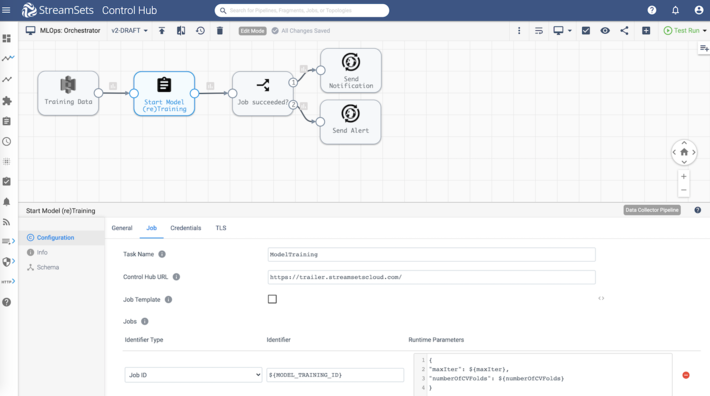

Now, a very common requirement is to automate the process of retraining the model as and when more data becomes available€“especially if the model hasn€™t yet met the evaluation criteria. For example, accuracy can be one of the metrics on how a particular model is evaluated. This type of automation can be implemented by setting up an orchestrator pipeline as shown below.

The orchestrator pipeline is designed to continuously run and €œwait€ for training dataset  files to be uploaded on Amazon S3. As soon as a training dataset is uploaded, this pipeline triggers/starts the model (re)training job described earlier.

9191210490

Also note that there are two hyperparameters maxIter and numberOfCVFolds passed in the pipeline so there€™s no need to hard code them, and can be dynamically passed into the pipeline during model retraining and experimentation. The StreamSets DataOps Platform also provides ways to check the status of jobs that are currently running so that actions can be taken based on the status as shown above in the pipeline.

Sample Pipelines

If you€™re interested in additional technical details and sample pipelines, please reach out to me: dash at streamsets dot com or on Twitter @iamontheinet.

Get Started With Your Own Model Experiments

StreamSets DataOps Platform is not a machine learning platform, but it does provide important capabilities and extensibility that can help and expedite operations at some of the most crucial stages of the ML Lifecycle and MLOps. See this data pipeline demo at my Data + AI Summit session

Learn more about StreamSets For Databricks available on AWS Marketplace and Microsoft Azure Marketplace.
