IntelligentGraph = Knowledge Graph + Embedded Analysis


Why IntelligentGraph?

IntelligentGraph adds analysis capability embedded within RDF graphs.

At present calculations are either delivered by custom code or spreadsheets. The data behind these is inevitably tabular. In fact, so dominant are spreadsheets with analysis that the spreadsheet often becomes the ‘database’ with the inherent difficulties of syncing that data with the source system of record.

The real world is better represented as a network or graph of interconnected things, therefore a knowledge graph is a far better storage organization than tables or objects. However, there is still the need to perform ad hoc numerical analysis over this data.

Confronted with this dilemma, knowledge graph data would typically be exported in tabular form to a datamart or directly into, yet again, a spreadsheet where the analysis could be performed.

IntelligentGraph turns this approach on its head by embedding the calculations within the knowledge graph. This allows the calculations to know about its neighboring nodes and edges.

Inova8 IntelligentGraph

Example IIoT Data and Analysis

An Industrial Internet of Things (IIoT) application is connecting all the measurements about a process plant, such as an oil refinery, into a knowledge graph that relates the measurements to the material flows through the process equipment.

Although there is an abundance of measurements and laboratory analyses available, the values required for operating and performance monitoring are not (and mostly cannot) be directly measured.

For example:

  • Stream Mass-Flow:
    • direct mass flow measurements are rare. Instead, a volume flow measurement is used in conjunction with a measured material density to calculate the mass-flow
  • Unit Mass Flow Throughput:
    • this is calculated by summing either all feed stream mass flows or product stream mass flows.
  • Unit Mass Balance:
    • this is calculated by differencing the feed from product mass flows
  • Product Stream Yield:
    • this is the ratio of a stream’s mass-flow to the unit to which the stream is connected throughput.

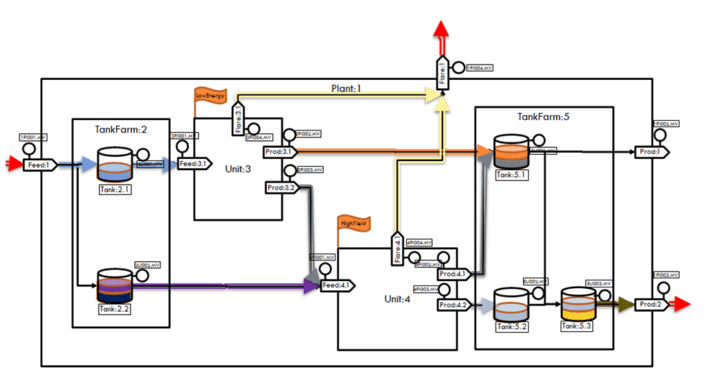

Figure 1: Typical Process Flow Sheet

These are simple examples; however, they show the reliance on the knowledge graph structure to perform the analysis.

Solving data analysis, the traditional way

Data is in the database, analysis is done by the analysis engine (aka Excel), right?

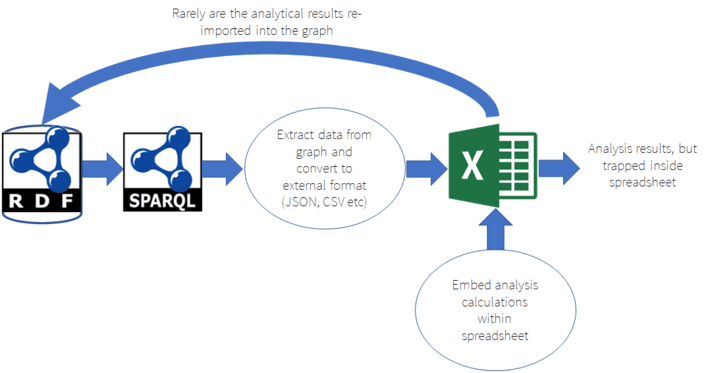

Figure 2: Data analysis the traditional way

So, the local power user sets up a query to export data from the database and converts it to a format that can be imported into Excel. Ever-increasingly complex formulae are then written to wrangle the data into the results that are required.

Why is this approach risky?

  • The analysis is now separated from the data. Data changes will not be reflected in the analysis. Worse still, changes to the analysis might not be propagated to all the spawned copies of the spreadsheet.
  • The data is separated from the analysis. The analysis results are rarely re-imported into the datastore where data vs analysis could be performed. Instead, even more data is extracted into the spreadsheet.
  • The difficulty of managing the separation of data from analysis becomes so great that in many cases the database is dispensed with entirely and the spreadsheet becomes the de-facto database.

Solving data analysis with an IntelligentGraph

The beauty of Excel is that a cell can contain either a value or a formula that can reference other cell’s values. Why not do the same with a graph: a node can have edges that terminate with a literal value, or a formula that can reference other node’s values.

This is illustrated in the diagram below:

  • The :massFlow property is not measured directly, so a formula is used for its value instead. This formula references _this, the node to which the calculation is attached, and uses the method getFact() to retrieve related values.
  • The :totalProduction property is not measured directly, so a formula is used instead which iterates over all of the ‘stream out’ nodes, retrieving the value of the :massFlow for each stream. The :massFlow value is, of course, in turn, a calculation.

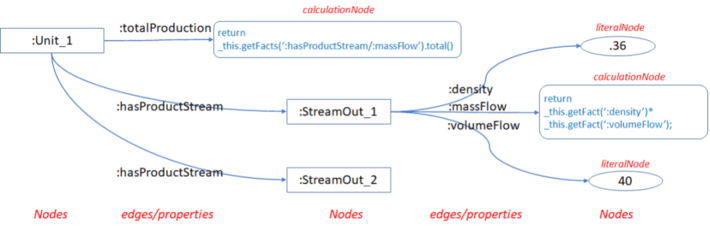

Figure 3: Intelligent Graph Data Analysis

Why is this approach so advantageous?

  • There is no separation between data and analysis, with all the risks that approach entails.
  • The calculations embedded within the graph can take advantage of the knowledge that is contained within that graph. This makes the calculations far simpler than those that need to be embedded in spreadsheets.
  • The calculations will automatically adapt to the changing knowledge.

How does IntelligentGraph work?

Analysis is embedded in an IntelligentGraph simply by adding script literals as object values of subjects with datatype of the scripting language (groovy, javascript, python etc).

The IntelligentGraph engine is provided as an RDF4J Stackable SAIL. This means that its capabilities can be combined with any other RDF4J capabilities. The choice of RDF storage remains the same as for any other RDF4J compliant framework.

Modeling with Scripts

Typically, a graph node will have associated attributes with values, such as a stream with volumeFlow and density values, aka stream attributes:

    :density ".36"^^xsd:float ;
    :volumeFlow "40"^^xsd:float .
:Stream_2 ...

Of course, in the ‘real-world’ these measured values are sourced from outside the KnowledgeGraph and change over time. IntelligentGraph can deal with both of these requirements.

The ‘model’ of the streams can be captured as edges associated with the Unit:

    :hasProductStream :Stream_1 ;
    :hasProductStream:Stream_2 .

Calculate Mass Flow

The calculations are declared as literals with a datatype whose local name corresponds to one of the installed script languages:

:Stream_1 :massFlow
    _this.getFact(':volumeFlow');"^^:groovy .

Calculate Total Production

A typical performance metric is to understand the total production from a unit, which is not of course directly measured. However, it can be easily expressed using existing calculated values:

:Unit_1   :totalProduction
    "var totalProduction =0.0;
    for(Resource stream : _this.getFacts(':hasProductStream'))
        totalProduction += stream.getFact(':massFlow');
    return totalProduction; "^^:groovy .

Instead of returning the object literal value (aka the script), the IntelligentGraph will return the result value for the script.

We can write this script even more succinctly using the expressive power PathQL:

:Unit_1  :totalProduction
    "return _this.getFacts(':hasProductStream/:massFlow').total(); "^^:groovy

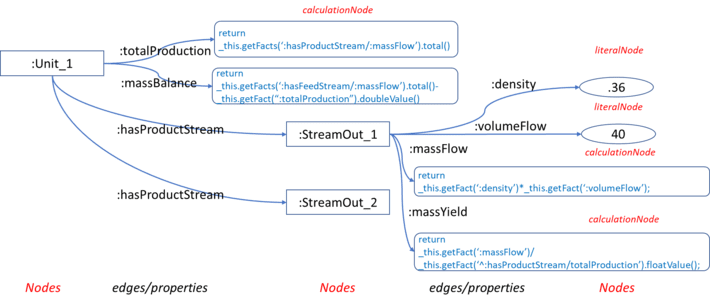

However, IntelligentGraph allows us to build upon existing calculations to simply express what would normally be difficult-to-calculate metrics, such as product yield or mass balance:


Calculate Mass Yield

Any production unit has different valued products. So a key metric is the yield of individual streams. This can easily be calculated as follows, using values that are themselves calculations.

var result= _this.getFact(":massFlow").floatValue()/



Calculate Mass Balance

Measurements are not perfect, nor is the operation of a unit. One of the first indicators of a problem is when the mass flow in does not match the mass flow out. This can be expressed as another calculated property of a Unit:

return  _this.getFacts(":hasFeedStream/massFlow").total() -_this.getFacts(":totalProduction").total();

Querying Results

Access to the calculated values is via standard-SPARQL. However instead of returning the script literal, IntelligentGraph will invoke the script engine,

Thus to access the :massFlow calculated value, the SPARQL is simply:

select ?massFlow
    :Stream_1 :massFlow ?massFlow

If the script literal is required then the object variable can be postfixed with _SCRIPT:

select ?massFlow ?massFlow_SCRIPT
    :Stream_1 :massFlow ?massFlow, ?massFlow_SCRIPT

If a full trace of the calculation, including tracing calls to other scripts, is required then the object variable can be postfixed with _TRACE:

select ?massFlow ?massFlow_TRACE
    :Stream_1 :massFlow ?massFlow, ?massFlow_TRACE

How to Write IntelligentGraph Scripts?

Script Languages

Any Java 9 supported language can be used simply by making the corresponding language JAR available.

By default, JavaScript, Groovy, Python JAR are installed. The complete list of compliant languages is as follows

AWK, BeanShell, ejs, FreeMarker, Groovy, Jaskell, Java, JavaScript, JavaScript (Web Browser), Jelly, JEP, Jexl, jst, JudoScript, JUEL, OGNL, Pnuts, Python, Ruby, Scheme, Sleep, Tcl, Velocity, XPath, XSLT, JavaFX Script, ABCL, AppleScript, Bex script, OCaml Scripting Project, PHP, Python, Smalltalk, CajuScript, MathEclipse

Script Context Variables

In addition, each script has access to the following predefined variables that allow the script to access the context within which it is being run.

  • _this, a Thing corresponding to the subject of the triples for which the script is the object.  Since this available, helper functions are provided to navigate edges to or from this ‘thing’ below:
  • _property, a Thing corresponding to the predicate or property of the triples for which the script is the object.
  • _customQueryOptions, a HashMap<String, Value> of name/value pairs corresponding to the pairs of additional arguments to the SPARQL extension function. These are useful for passing application-specific parameters.
  • _builder, a RDF4J graph builder object allowing a graph to be constructed (and manipulated) within the script. A graph cannot be returned from a SPARQL function. However the IRI of the graph can be returned, and any graph created by a script will be persisted.
  • _tripleSource, the RDF4J TripleSource to which the subject, predicate, triple belongs.

Fact and Path Functions

The spreadsheets’ secret sauce is the ability of a cell formula to access values of other cells, either individually or as a set. The IntelligentGraph provides this functionality with several methods associated with Thing, which are applicable to the _this Thing initiated for each script with the subject Thing.

Thing.getFact(String pathPattern) returns Value

Returns the value of node referenced by the pathPattern, for example “:volumeFlow” returns the object value of the :volumeFlow edge relative to _this node. The pathPattern allows for more complex path navigation.

Thing.getFacts(String pathPattern) returns Values

Returns the values of nodes referenced by the pathPattern, for example “:hasProductStream” returns an iterator for all object values of the :hasProductStream edge relative to _this node. The pathPattern allows for more complex path navigation.

Thing.getPath(String pathQL) returns Path

Returns the first (shortest)  path referenced by the pathQL, for example “:parent{1..5}” returns the path to the first ancestor of _this node. The pathQL allows for more complex path navigation.

Thing.getPaths(String pathQL) returns PathResults

Returns all paths referenced by the pathQL, for example “:parent{1..5}” returns an iterator, starting with the shortest path,  for all paths to the ancestors of _this node. The pathQL allows for more complex path navigation.

Path Patterns

Spreadsheets are not limited to accessing just adjacent cells; neither is the IntelligentGraph. PathPatterns provide a powerful way of navigating from one Thing node to another. PathPatterns are inspired by SPARQL and propertyPaths, but a richer, more expressive, pathPattern was required for the IntelligentGraph.


The following diagram visualizes a path through a genealogical graph, from this to the find the parent of a maternal grandfather born in Maidstone:

_this.getFacts("/:parent[:gender :female]/:parent[:birthplace [rdfs:label 'Maidstone']]/:parent")

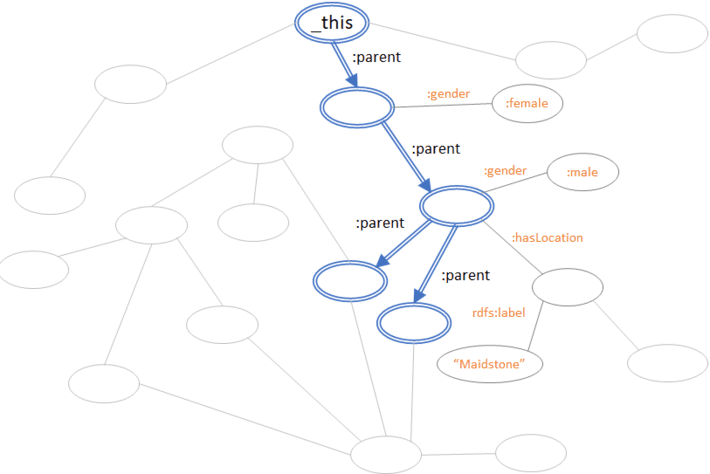

Figure 4: PathPattern of Parent of Maternal Grandfather born in Maidstone

Examples of pathQL patterns  are as follows:

  • _this.getFact(":hasParent")
  • will return the first parent of _this.
  • _this.getFact("^:hasParent")
  • will return the first child of _this.
  • _this.getFacts(":hasParent/:hasParent")
  • will return the grandparents of _this.
  • _this.getFacts(":hasParent/^:hasParent")
  • will return the siblings of _this.
  • _this.getFacts(":hasParent[:gender :female]/:hasParent")
  • will return the maternal grandparents of _this
  • _this.getFacts(":hasParent[:gender :female]/:hasParent[:gender :male]")
  • will return the maternal grandfather of _this.
  • _this.getFacts(":hasParent[:gender [ rdfs:label "female"]]")
  • will return the mother of _this but using the label instead of the IRI.
  • _this.getFacts(":hasParent[eq :Peter]/:hasParent[:gender :male]")
  • will return the grandfather of _this, who is the parent of :Peter.
  • _this.getFacts(":hasParent[ne :Peter]/:hasParent[:gender :male]")
  • will return grandfathers of _this, who are not the parent of :Peter.
  • _this.getPath(":parent{0,4}/:parent[:hasLocation :maidstone]")
  • will return the path to most recent ancestor whose parent was born in a location :maidstone
  • _this.getFacts(":parent{0,4}/:parent[:hasLocation [rdfs:label 'Maidstone']]")
  • will return all ancestors whose parent was born in a location named “Maidstone”
  • _this.getPaths(":connectedTo{1,10}[eq :BakerStreet]")
  • will find all routes, starting with shortest,  between _this and :BakerStreet with a maximum of 10 connections, thus all on the same line
  • _this.getPaths(":connectedTo{1,5}/:changeTo{0,2}/:connectedTo{1,5}[eq :BakerStreet]")
  • will find all routes, starting with the shortest,  between _this and :BakerStreet with a maximum of two changes

How is Performance?

Excellent: IntelligentGraph takes the following actions to ensure performance:

  1. All intermediate calculation results are cached, keyed by the subjectNode, predicate, and customQueryOptions.
  2. The cache can be cleared.
  3. Circular functions, in which A calls B calls A, are detected and rejected.

Can I Debug Scripts?

Since IntelligentGraph combines calculations with the knowledge graph, it is inevitable that any evaluation will involve calls to values of other nodes which are in turn calculations. For this reason, IntelligentGraph supports tracing and debugging:

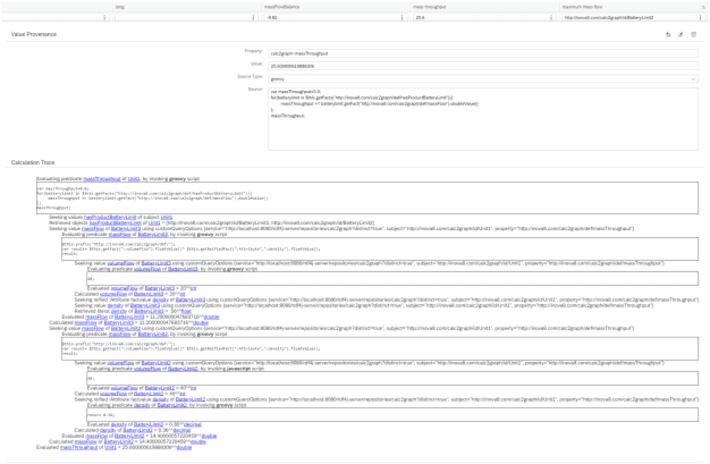

Figure 5: Tracing Calculation#

How Do I Add Intelligence to my RDF4J Graph



The project is located in Github, from where the intelligentgraph.jar can be downloaded from there:

The intelligentgraph.jar does not include all of the scripting etc language dependencies, so to use it you would have to be certain all dependencies are already available.


IntelligentGraph will work only with RDF4J version 3.3.0 and above.

  • Copy intelligentgraph.jar
  • To  /usr/local/tomcat/webapps/rdf4j-server/WEB-INF/lib/intelligentgraph.jar

The RDF4J server will need to be restarted for it to recognize this new JAR and initiate the scripting engine.
