Speaker Diversity Analytics with the Microsoft AI Face API

How do we increase diversity amongst our event speakers?  To improve something, we must first measure it.  The Face API allows us to collect some of these demographics from past events that we may not otherwise be able to collect, which may allow us greater insight into how we can improve these trends.

The Facial Recognition API is part of the Microsoft AI Cognitive Services suite.  The Face service detects human faces in an image and returns the rectangle coordinates of their locations. Optionally, face detection can extract a series of face-related attributes. Examples are head pose, gender, age, emotion, facial hair, and glasses.  The Face API is Azure based and is a subset of the Vision API functionality.  To leverage the Face API an image can be programmatically sent to the API via a number of languages.  Along with the image file, the caller can also submit parameters detailing which subset of return values to send back.

Capabilities of the Face API:

Face Detection – Coordinates of human faces within image.  Optional face attributes.

Face Verification – Evaluates if two faces belong to the same person.

Find Similar – Finds faces that either match an image or are similar to an image.

Face Grouping – Divides a set of images, so that similar images are grouped.

Person Identification – Identify a detected face against a database of people.

For this example, we will be using the Face Detection functionality and will explore the option of extracting face-related attributes.  For this example, we will request facial attributes for gender and facial hair.  The general assumption being that, humans classified as ‘female’ with heavy facial hair, may possibly be misclassified!  The expected response for gender: male or female, and facialHair: return lengths in three facial hair areas: moustache, beard and sideburns. The length is a number between [0,1]. 0 for no facial hair in this area, 1 for long or very thick facial hairs in this area.

As an input, I am using a picture taken from a recent Houston Area System Management (HASMUG)– Azure Edition event that included from left to right: Ryan Durbin, Billy York, myself & Jim Reid.

4181792596

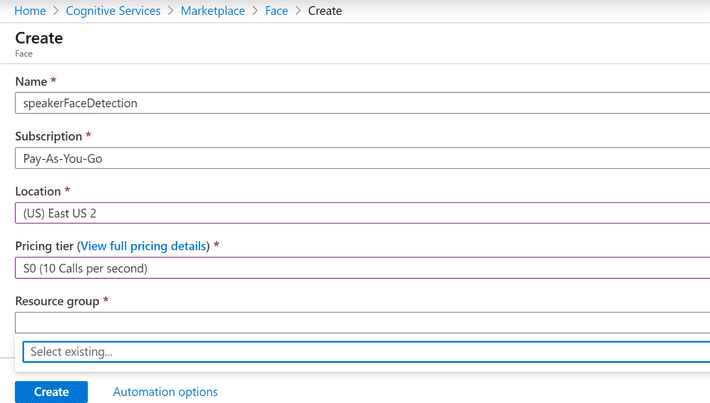

Once we log into the azure portal, we can easily create a Face service by selecting it from the marketplace then choosing our Location, Pricing tier and Resource Group.

 4181797071

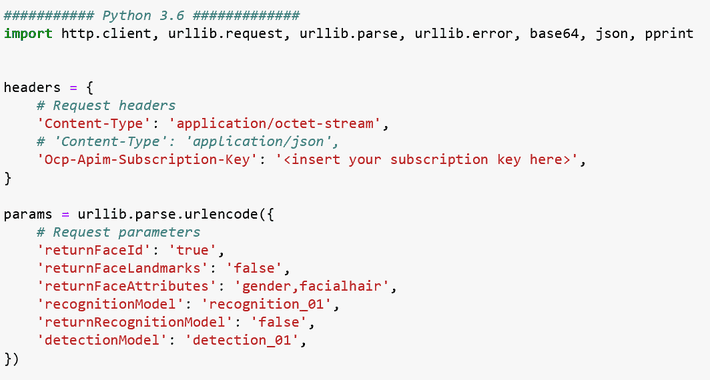

We can then pass an image to the API.  Below is an example piece of python code that calls the API in Azure Notebooks.  The first two steps of the code assign your API subscription key to the variable Ocp-Apim-Subscription-Key and defines the parameters that are expected as input by the API.

4181808658

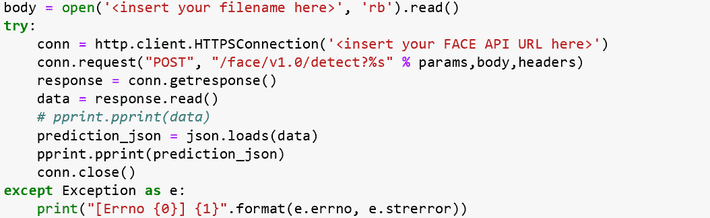

The next pieces of the code will open the image file and assign the file contents to a variable.  Then finally, the image file contents are passed to the API via a POST request.

4181814966

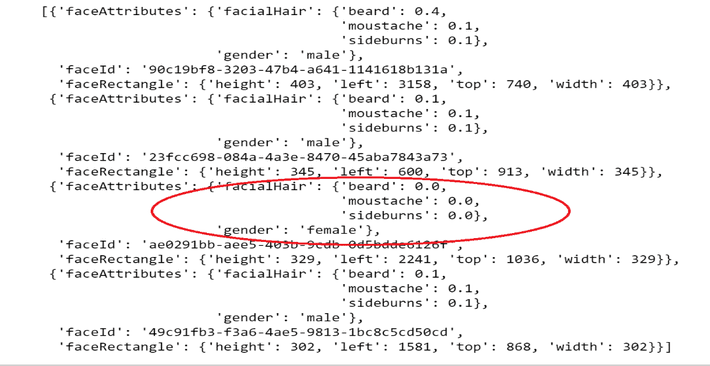

Taking a look at the JSON Payload from calling the Facial Recognition API, we can see that there are 3 males identified and 1 female.

4181819292

Thankfully, it should be noted that my beard and moustache threshold is 0.0.  I was worried that it might not be!  Optionally, we can also experiment with results when using the Find Similar feature or the Facial Attribute emotion.  The Face API is another example of how Artificial Intelligence allows us to classify and label data in bulk.

Data Privacy & Security

While the capabilities of the Face API continue to evolve, the caveat of course, is how do we utilize this technology without intruding on the expected privacy of event attendees? #AIEthics Please note: permission has been obtained from each of the individuals in the picture above.

As with all of the Cognitive Services resources, developers who use the Face service must be aware of Microsoft’s policies on customer data. The Cognitive Services page on the Microsoft Trust Center calls out that Cognitive Services give the programmer control over the storage and deletion of any data stored.  Additionally, Face API documentation further details that with Facial Attributes, no images will be stored. Only the extracted face feature(s) will be stored on server.

References:

Microsoft Cognitive Services Face API Overview

https://docs.microsoft.com/en-us/azure/cognitive-services/face/over…

Microsoft Cognitive Services Face API Documentation

https://docs.microsoft.com/en-us/azure/cognitive-services/face/apir…
