## Poisson Image Editing

The goal of *Poisson image editing* is to perform *seamless blending* of an *object* or a *texture*from a* source image* (captured by a *mask image*) to a *target image*. We want to create a photomontage by pasting an image region onto a new background using Poisson image editing. This idea is from the *P´erez et al*’s *SIGGRAPH 2003* paper Poisson Image Editing.

The following figures describe the basic theory. As can be seen, the problem is first expressed in the continuous domain as a ** constrained variational optimization **problem and then can be solved using a discrete Poisson solver

As described in the paper , the main task of *Poisson image editing* is to solve a ** huge linear system** Ax = b (where I is the new unknown image and S and T are the known images).

## Seamless Cloning

The following images are taken from an *assignment* , where the *Poisson image editing* had to be used to blend the source inside the mask inside the target image. The next few figures show the result obtained.

* Source Image*https://sandipanweb.files.wordpress.com/2017/10/bear.png?w=150&… 150w” sizes=”(max-width: 701px) 100vw, 701px” />

* Mask Image*https://sandipanweb.files.wordpress.com/2017/10/mask.png?w=150&… 150w” sizes=”(max-width: 687px) 100vw, 687px” />

**Target Image**

**Output Gray-Scale Image with Poisson Image Editing**

https://sandipanweb.files.wordpress.com/2017/10/pe_waterpool.png?w=… 150w” sizes=”(max-width: 676px) 100vw, 676px” />

The next *animation* shows the solution gray-scale images obtained at different *iterations* using * Conjugate Gradient* method when

*solving*the

*.*

**linear system of equations****Output Color Image with Poisson Image Editing**

The next ** animation **shows the solution color images obtained at different

*iterations*using

*method to*

**Conjugate Gradient***solve*the

*, applying the discrete Poisson solver on each channel.*

**linear system of equations**The following images are taken from another on *computational photography*. Again, the same technique is used to blend the octopus from the source image to the target image.

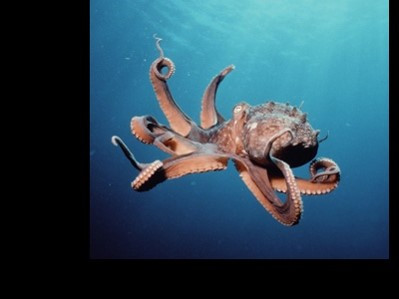

**Source Image**

**Mask Image**

**Target Image**

**Output Image**

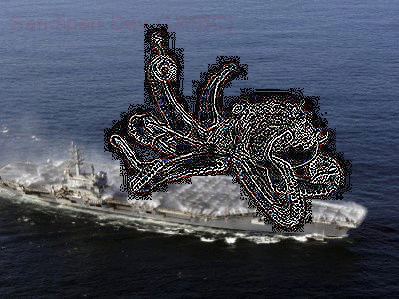

The next ** animation **shows the solution color images obtained at different

*iterations*using

*method to*

**Conjugate Gradient***solve*the

*, applying the discrete Poisson solver on each channel.*

**linear system of equations**Again, ** Poisson gradient domain seamless cloning** was used to blend the

*penguins’ image*inside the following target image with appropriate mask.

**Source Image**

**Target Image **

**Output Image**

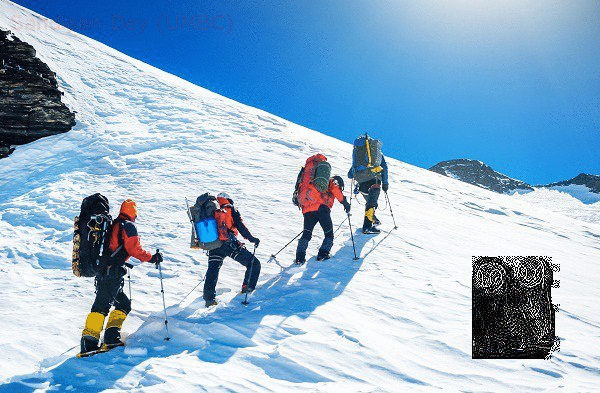

The next ** animation **again shows the solution color images obtained at different

*iterations*using

*method to*

**Conjugate Gradient***solve*the

*, applying the discrete Poisson solver on each channel.*

**linear system of equations**The next figures show how a *source bird* image is blended into the *target cloud* image with * seamless cloning*.

**Source Image**

**Target Image**

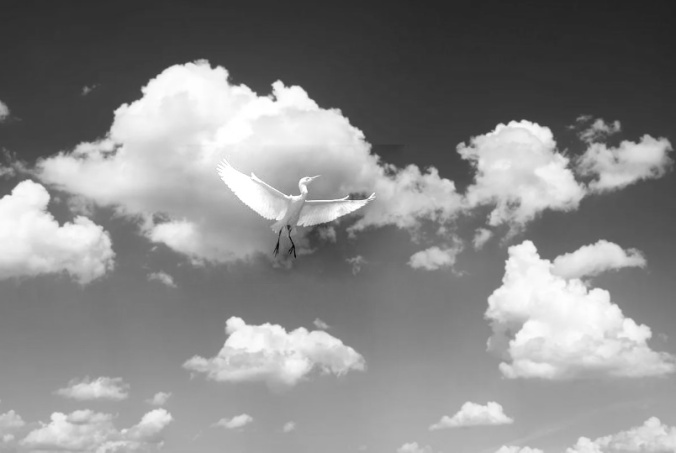

**Output gray-scale image**

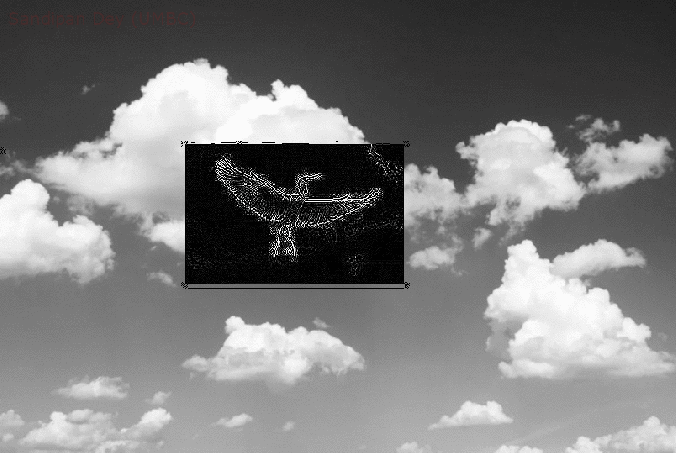

The next *animation* shows the solution gray-scale images obtained at the first few i*terations* using * Conjugate Gradient* method when

*solving*the

*.*

**linear system of equations**Finally, the next figures show how the *idol* of the *Goddess Durga* is blended into the *target *image of the *city of kolkata* with * seamless cloning*. As can be seen, since the source mask had its own texture and there is a lots of variations in the background texture, the seamless cloning does not work that well.

**Source Image**

**Target Image**

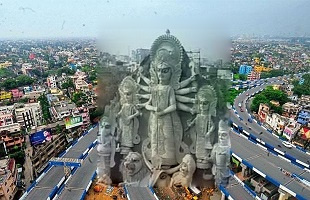

**Output Image**

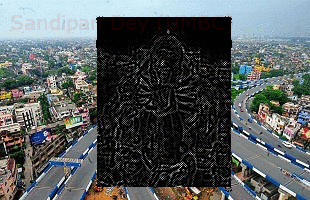

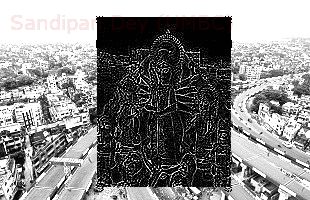

The next *animation* shows the solution gray-scale images obtained at the first few i*terations* using * Conjugate Gradient* method when

*solving*the

*.*

**linear system of equations**The next ** animation **again shows the solution color images obtained at different

*iterations*using

*method to*

**Conjugate Gradient***solve*the

*, applying the discrete Poisson solver on each channel.*

**linear system of equations***Gradient Mixing: Inserting objects with holes*

Again, the next figures are taken from the same paper, this time the source objects contain holes. As can be seen from the following results, the ** seamless cloning **does not work well in this case for inserting the object with holes into the target, the

*target texture*is lost inside the mask after blending.

**Source Image Target Image**

**Output Image with Poisson Seamless Cloning**

The next ** animation **again shows the solution color images obtained at the first few

*iterations*using

*method while*

**Conjugate Gradient***solving*the

*for*

**linear system of equations***, applying the discrete Poisson solver on each channel.*

**seamless cloning**Using the * mixing gradients* method the blending result obtained is far better, as shown below, it preserves the target texture.

**Output Image with Poisson Mixing Gradients**

The next ** animation **again shows the solution color images obtained at the first few

*iterations*using

*method while*

**Conjugate Gradient***solving*the

*for*

**linear system of equations***, applying the discrete Poisson solver on each channel.*

**mixing gradients**The next few figures show the results obtained using mixing gradients on another set of images, the * seamless cloning *does not work well in this case, but

*works just fine.*

**mixing gradient****Source Image**

**Target Image**

**Output Image with mixing gradients**

The next ** animation **again shows the solution color images obtained at the first few

*iterations*using

*method while*

**Conjugate Gradient***solving*the

*for*

**linear system of equations***, applying the discrete Poisson solver on each channel.*

**mixing gradients**## Creating Cartoon-like images: Texture Flattening

As illustrated in the paper, by retaining only the gradients at edge locations, before integrating with the Poisson solver, one washes out the texture of the selected region, giving its contents a flat aspect.

The following figures show the output *cartoon-like image* obtained using * texture flattening*, using the canny-edge detector to generate the mask.

**Source Image**

**Mask Image created with Canny edge detector**

**Output cartoon obtained with texture flattening from the source with the mask **

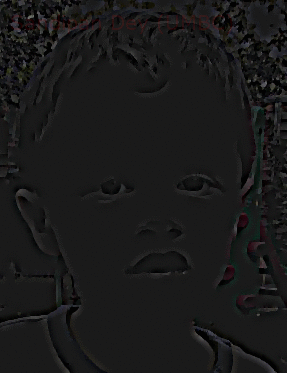

The next ** animation **shows the solution color images obtained at the first few

*iterations*using

*method while*

**Conjugate Gradient***solving*the

*for*

**linear system of equations***, applying the discrete Poisson solver on each channel.*

**texture flattening**Again, the next figures show the output *cartoon-like image* obtained using * texture flattening*, using the canny-edge detector to generate the mask on my image.

**Source Image**

**Output image obtained with texture flattening **

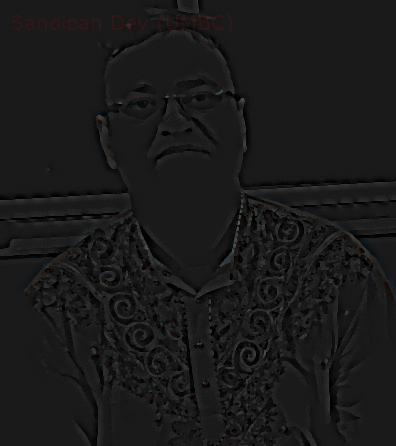

The next ** animation **again shows the solution color images obtained at the first few

*iterations*using

*method while*

**Conjugate Gradient***solving*the

*for*

**linear system of equations***, applying the discrete Poisson solver on each channel.*

**texture flattening**
