PathQL: Intelligently finding knowledge as a path through a maze of facts


PathQL simplifies finding paths through the maze of facts within a KnowledgeGraph. Used within IntelligentGraph scripts it allows data analysis to be embedded within the graph, rather than requiring graph data to be exported to an analysis engine. Used with IntelligentGraph Jupyter Notebooks it provides powerful data analytics

I would suggest that Google does not have its own intelligence. If I search for, say, €˜Arnold Schwarzenegger and Harvard€™, Google will only suggest documents that contain BOTH Arnold Schwarzenegger and Harvard. I might be lucky that someone has digested these facts and produced a single web page with the knowledge I want. I might, however, just as easily find a page of fake knowledge relating Arnold to Harvard.

It is undoubtedly true that Google can provide individual facts such as:

  1. Arnold married to Shriver
  2. Shriver daughter Joseph
  3. Joseph alma mater Harvard

However, intelligence is the ability to connect individual facts into a knowledge path.

  • KnowledgeGraph models can provide the facts to answer these questions.
  • PathQL provides an easy way to discover knowledge by describing paths and connections through these facts.
  • IntelligentGraph embeds that intelligence into any KnowledgeGraph as scripts.

IntelligentGraph-PathQL and Scripting

Genealogical Example

Genealogy is a grandfather of graphs, it is, therefore, natural to organize family trees as a knowledge graph.  A typical PathQL question to ask would then be: who are the parents of a male ancestor, born in Maidstone, of this individual, and what is that relationship?

Industrial Internet of Things (IIoT) Example

The Industrial Internet of Things (IIot) is best modeled as an interconnected graph of ‘thing’ nodes. These things might be sensors producing measurements, the equipment to which the sensors are attached, or how the equipment is interconnected to form a functioning plant. However, the ‘intelligence’ about why the plant is interconnected is what an experienced (aka intelligent, knowledgeable) process engineer offers. To support such intelligence with a knowledge graph requires answering PathQL questions such as

  1. If the V101 bottoms pump stops how does this affect the product flow from this production unit?
  2. If the FI101 instrument fails how does this affect the boiler feed temperature?
  3. What upstream could possibly be affecting this stream€™s quality?
  4. €¦ and so on.

Why PathQL?

SPARQL is a superb graph pattern query language, so why create another?

PathQL started out as the need to traverse the nodes and edges in a triplestore both without the benefit of SPARQL and within a scripting language of IntelligentGraph. IntelligentGraph works by embedding the calculations within the graph. Therefore, just like a spreadsheet calculation can access other ‘cells’ within its spreadsheet, IntelligentGraph needed a way of traversing the graph through interconnected nodes and edges to other nodes from where relevant values can be retrieved.

I didn’t want to create a new language, but it was essential that the IntelligentGraph provided a very easy way to navigate a path through a graph. It then became clear that, as powerful as SPARQL is for graph pattern matching, it can be verbose for matching path patterns. PathQL was born, but not without positive prodding from my colleague Phil Ashworth.

Adding Intelligence to Graphs with Scripts

Typically, a graph node will have associated attributes with values, such as a stream with volumeFlow and density values. These values might have been imported from some external system or other:

Stream Attributes:

:Stream_1     :density ".36"^^xsd:float ;     :volumeFlow "40"^^xsd:float . :Stream_2 ....

The €˜model€™ of the streams can be captured as edges associated with the Unit:

:Unit_1     :hasProductStream :Stream_1 ;     :hasProductStream :Stream_2 .

However, most €˜attributes’ that we want to see about a thing are not measured directly. Instead, they need to be calculated from other values. This is why we end up with spreadsheet-hell: importing the raw data from the data sources into a spreadsheet simply so we can add calculated columns, the values of which are rarely exported back to the source-databases.

IntelligentGraph allows these calculations to be embedded in the graph as literals[1] with a datatype whose local name corresponds to one of the installed script languages:

:Stream_1     :massFlow         "_this.getFact(€˜:density€™)*         _this.getFact(€˜:volumeFlow€™);"^^:groovy .  :Unit_1     :totalProduction         "var totalProduction =0.0;         for(Resource stream : _this.getFacts(€˜:hasProductStream€™))         {             totalProduction += stream.getFact(€˜:massFlow€™);         }         return totalProduction; "^^:groovy .

Instead of returning the object literal value (aka the script), the IntelligentGraph will return the result value for the script.

We can write this script even more succinctly using the expressive power of PathQL:

:Unit_1  :totalProduction  "return _this.getFacts(€˜:hasProductStream/:massFlow€™).total(); "^^:groovy .


Spreadsheets are not limited to accessing just adjacent cells; neither is the IntelligentGraph. PathQL provides a powerful way of navigating from one Thing node to others. PathQL was inspired by SPARQL and propertyPaths, but a richer, more expressive, path searching was required for the IntelligentGraph.

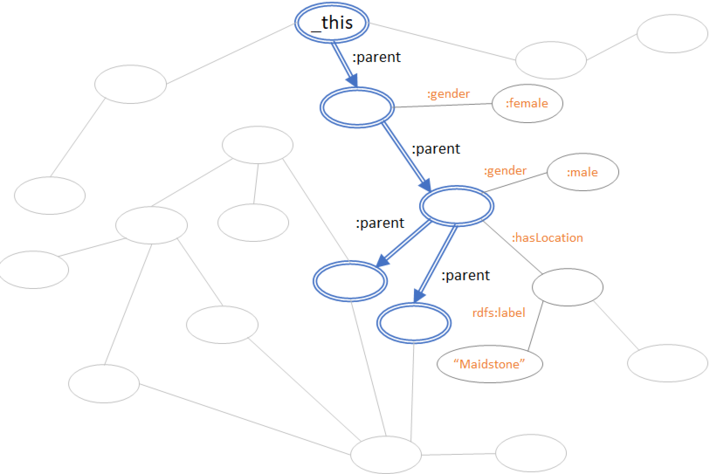

Genealogy Example Graph

Examples of PathQL that explore this genealogy are as follows:

  • _this.getFact(€œ:parent€)
    • will return the first parent of _this.
  • _this.getFact(€œ^:parent€)
    •  will return the first child of _this.
  • _this.getFacts(€œ:parent/:parent€)
    •  will return the grandparents of _this.
  • this.getFacts(€œ:parent/^:parent€)
    •  will return the siblings of _this.
  •  _this.getFacts(€œ:parent[:gender :female]/:parent€)
    •  will return the maternal grandparents of _this
  • _this.getFacts(€œ:parent[:gender :female]/:parent[:gender :male]€)
    •  will return the maternal grandfather of _this.
  • _this.getFacts(€œ:parent[:gender [ rdfs:label €œfemale€]]€)
    •  will return the mother of _this but using the label instead of the IRI.
  •  _this.getFacts(€œ:parent[eq :Peter]/:parent[:gender :male]€)
    •  will return the grandfather of _this, who is the parent of :Peter.
  •  _this.getFacts(€œ:parent[ne :Peter]/:parent[:gender :male]€)
    •  will return grandfathers of _this, who are not the parent of :Peter.
  • _this.getFacts(€œ:parent{0,4}/:parent[:hasLocation :maidstone]€)
    •  will return all ancestors whose parent was born in a location :maidstone
  • _this.getPath(€œ:parent{0,4}/:parent[:hasLocation :maidstone]€)
    •  will return the path to most recent ancestor whose parent was born in a location :maidstone
  • _this.getFacts(€œ:parent{0,4}/:parent[:hasLocation [rdfs:label €˜Maidstone€™]]€)
    •  will return all ancestors whose parent was born in a location named €œMaidstone€
  • _this.getPaths(€œ:connectedTo{1,10}[eq :BakerStreet]€)
    • will find all routes, starting with shortest,  between _this and :BakerStreet with a maximum of 10 connections, thus all on the same line
  • _this.getPaths(€œ:connectedTo{1,5}/:changeTo{0,2}/:connectedTo{1,5}[eq :BakerStreet]€)
    • will find routes, starting with the shortest, between _this and :BakerStreet with a maximum of two changes

PathQL Formal Syntax

The parts of a PathPattern are defined below. The formal syntax in BNF is here: PathPattern Formal Syntax


The simplest pathPattern is an IRI of the predicate, property, or edge:


An unprefixed qname using the default namespace.


A prefixed qname using the namespace model.

a href="http://inova8.com/ft/hasParent%3E">http://inova8.com/ft/hasParent>;

A full IRI.


A pathPattern can consist of a set of alternative edges:


Alternative edges  to €˜close relatives€™ of the :subjectThing.


A pathPattern can consist of a sequence of edges:


 sequence of edges to the set of siblings of the start thing.

Inverse Modifier:

A modifier prefix to a predicate indicating that it should be navigated in the reverse direction (objectàsubject) instead of subjectàobject:


 A sequence of edges to the set of siblings of the start thing since ^:parent is equivalent to :hasChild.

Reified Modifier:

A modifier prefix to a predicate indicating that it should be assumed that the subject-predicate-object is reified.


navigates from the :subjectThing to the :objectThing when the edge has been reified as:

[]  rdf:subject :subjectThing ;     rdf:predicate :marriedTo ;     rdf:object :objectThing .

Inverse modifier can also be applied to navigate from the :objectThing to :subjectThing:


navigates from the :objectThing to the :subjectThing

Extended Reification Modifier:

The reification type and the predicate of an extended reification:

:[email protected]:civilPartnership

navigates from the :subjectThing to the :objectThing when the edge has been reified as a class that is a :Marriage, which is rdfs:subClassOf rdf:Statement with a predicate of :civilPartnership. For example:

 [] a :Marriage     :partner1 :subjectThing ;     :marriageType :civilPartnership ;     :partner2 :objectThing .  :Marraige rdfs:subClassOf rdf:Statement . :partner1 rdf:subPropertyOf rdf:subject . :marriageType rdf:subPropertyOf rdf:predicate. :partner2 rdf:subPropertyOf rdf:object .

An inverse modifier can also be applied to navigate from the :objectThing to :subjectThing

^:[email protected]:marriedTo

navigates from the :objectThing to the :subjectThing in the extended reification.

Dereification Modifier:

Instead of navigating to the objectThing of a reification, the dereification operator navigates to the reification thing:


navigates from the :subjectThing to the :marriage object.


navigates from the :subjectThing to the location :at which the marriage took place


navigates from the :subjectThing to the date :when the marriage took place

Path Filter:

A path filter can be applied to any point in a pathPattern to limit the subsequent paths. A path filter is like a SPARQL PropertyListNotEmpty graph pattern. However, it includes comparison operators lt, gt etc

:parent[:gender :male]

Navigates to the male parent.

:parent[:gender :male]/:parent[:gender :female]

Navigates to the paternal grandmother.

:volumeFlow[gt €œ50€]

Navigates only if the value is greater than €œ50€.

:appearsOn[eq :calc2graph1]

Navigates only if the objectNode value is :calc2graph1.

:appearsOn[ rdfs:label "Calc2Graph1"]

Navigates only if the objectNode has a rdfs:label with value “Calc2Graph1”.

:appearsOn[eq [ rdfs:label "Calc2Graph1"]]

Navigates only if the objectNode value is a node whose label is “Calc2Graph1”.


Repeats the pathPattern between the range of minimum and maximum cardinality


Finds the 1 to 5th ancestor of the reference node.

:parent[:gender :male]{1,5}

Finds the 1 to 5th male ancestor via the male line of the reference node.

Further Example Scripts

The following illustrates the IntelligentGraph scripts to perform the plant analysis example

Return Scalar Value

return 40;

Get Related Property Value

return _this.getFact(":testProperty2").doubleValue()

Calculate Stream Mass Flow

var result= _this.getFact(":volumeFlow").floatValue()* _this.getFact(":density").floatValue();   return result;

Calculate Unit Mass Throughput

return _this.getFacts(":hasProductStream/:massFlow").total();

Calculate Stream Mass Yield

var result= _this.getFact(":massFlow").floatValue()/ _this.getFact("^:hasStream/:massThroughput").floatValue();   return result;

Calculate Unit Mass Balance

return _this.getFacts(":hasFeedStream/:massFlow").total()  - _this.getFacts(":hasProductStream/:massFlow").total();

Path Navigation Functions

The spreadsheets€™ secret sauce is the ability of a cell formula to access values of other cells, either individually or as a set. The IntelligentGraph provides this functionality with several methods associated with Thing, which are applicable to the _this Thing initiated for each script with the subject Thing.

Thing.getFact(String pathQL) returns Resource

Returns the value of the node referenced by the pathQL, for example €œ:volumeFlow€ returns the object value of the :volumeFlow edge relative to _this node. The pathPattern allows for more complex path navigation.

Thing.getFacts(String pathQL) returns ResourceResults

Returns the values of nodes referenced by the pathQL, for example €œ:hasProductStream€ returns an iterator for all object values of the :hasProductStream edge relative to _this node. The pathPattern allows for more complex path navigation.

Thing.getPath(String pathQL) returns Path

Returns the first (shortest)  path referenced by the pathQL, for example €œ:parent{1..5}€ returns the path to the first ancestor of _this node. The pathQL allows for more complex path navigation.

Thing.getPaths(String pathQL) returns PathResults

Returns all paths referenced by the pathQL, for example €œ:parent{1..5}€ returns an iterator, starting with the shortest path,  for all paths to the ancestors of _this node. The pathQL allows for more complex path navigation.

Graph.getThing(String subjectIRI) returns Thing

Returns a node as defined by the IRI

Script Context Variables

Each script has access to the following predefined variables that allow the script to access the context within which it is being run.

_this, a Thing corresponding to the subject of the triples for which the script is the object.  Since this is available, helper functions are provided to navigate edges to or from this €˜thing€™ below:

_property, a Thing corresponding to the predicate or property of the triples for which the script is the object.

_customQueryOptions, a HashMap<String, Value> of name/value pairs corresponding to the pairs of additional arguments to the SPARQL extension function. These are useful for passing application-specific parameters.

_builder, a RDF4J graph builder object allowing a graph to be constructed (and manipulated) within the script. A graph cannot be returned from a SPARQL function. However the IRI of the graph can be returned, and any graph created by a script will be persisted.

_tripleSource, the RDF4J TripleSource to which the subject, predicate, triple belongs.


The formal syntax of the PathPattern is defined as follows using ANTLR4 BNF:

grammar PathPattern;
queryString : pathPattern queryOptions? EOF ; queryOptions : ( queryOption )+;
queryOption : KEY '=' literal ('^^' type )?;
type : qname;
pathPattern : binding ('/'|'>') pathPatterns #boundPattern
| binding #matchOnlyPattern
| pathPatterns #pathOnlyPattern;
binding : factFilterPattern ;
pathPatterns : pathEltOrInverse cardinality? #Path
| pathPatterns '|' pathPatterns #PathAlternative
| pathPatterns ('/'|'>') pathPatterns #PathSequence
| negation? '(' pathPatterns ')' cardinality? #PathParentheses;
cardinality : '{' INTEGER (',' ( INTEGER )? )? '}' ;
negation : '!'; pathEltOrInverse: negation? INVERSE? predicate ;
predicate : ( reifiedPredicate
| predicateRef
| rdfType
| anyPredicate ) factFilterPattern? ;
anyPredicate : ANYPREDICATE ;
reifiedPredicate: iriRef? REIFIER predicateRef factFilterPattern? dereifier? ;
predicateRef : IRI_REF | rdfType | qname | pname_ns ;
iriRef : IRI_REF | qname | pname_ns ;
dereifier : DEREIFIER ;
factFilterPattern: '[' propertyListNotEmpty ']';
propertyListNotEmpty: verbObjectList ( ';' ( verbObjectList )? )* ;
verbObjectList : verb objectList;
verb : operator | pathEltOrInverse ;
objectList : object ( ',' object )*;
object : iriRef | literal | factFilterPattern | BINDVARIABLE ;
pname_ns : PNAME_NS ;
literal : (DQLITERAL | SQLITERAL) ('^^' (IRI_REF | qname) )? ;
operator : OPERATOR ;
rdfType : RDFTYPE ;
KEY : '&' [a-zA-Z]+ ;
DIGIT : [0-9] ; INVERSE : '^';
OPERATOR : 'lt'|'gt'|'le'|'ge'|'eq'|'ne'|'like'|'query'|'property';
DQLITERAL : '"' (~('"' | '\\' | '\r' | '\n') | '\\' ('"' | '\\'))* '"';
SQLITERAL : '\'' (~('\'' | '\\' | '\r' | '\n') | '\\' ('\'' | '\\'))* '\'';
IRI_REF : '<' ( ~('<' | '>' | '"' | '{' | '}' | '|' | '^' | '\\' | '`') | (PN_CHARS))* '>' ;
PNAME_NS : PN_PREFIX? (':'|'~') ;
VARNAME : '?' [a-zA-Z]+ ;
| '-'
| 'a'..'z'
| '\u00C0'..'\u00D6'
| '\u00D8'..'\u00F6'
| '\u00F8'..'\u02FF'
| '\u0370'..'\u037D'
| '\u037F'..'\u1FFF'
| '\u200C'..'\u200D'
| '\u2070'..'\u218F'
| '\u2C00'..'\u2FEF'
| '\u3001'..'\uD7FF'
| '\uF900'..'\uFDCF'
| '\uFDF0'..'\uFFFD' ;
WS : [ \t\r\n]+ -> skip ;

[1]  SCRIPT Languages

In this case, the script uses Groovy, but any Java 9 compliant scripting language can be used, such as JavaScript, Python, Ruby, and many more.

By default, JavaScript, Groovy, Python JAR are installed. The complete list of compliant languages is as follows

AWK, BeanShell, ejs, FreeMarker, Groovy, Jaskell, Java, JavaScript, JavaScript (Web Browser), Jelly, JEP, Jexl, jst, JudoScript, JUEL, OGNL, Pnuts, Python, Ruby, Scheme, Sleep, Tcl, Velocity, XPath, XSLT, JavaFX Script, ABCL, AppleScript, Bex script, OCaml Scripting Project, PHP, Python, Smalltalk, CajuScript, MathEclipse
