Fine-Tuning Transformer Model for Invoice Recognition

1dj69AL1yQYIj7ln2XPoqNgA step-by-step guide from annotation to training

                                                    Photo by Andrey Popov from Dreamstime

Introduction

Building on my recent tutorial on how to annotate PDFs and scanned images for NLP applications, we will attempt to fine-tune the recently released Microsoft€™s Layout LM model on an annotated custom dataset that includes French and English invoices. While the previous tutorials focused on using the publicly available FUNSD dataset to fine-tune the model, here we will show the entire process starting from annotation and pre-processing to training and inference.

LayoutLM Model

The LayoutLM model is based on BERT architecture but with two additional types of input embeddings. The first is a 2-D position embedding that denotes the relative position of a token within a document, and the second is an image embedding for scanned token images within a document. This model achieved new state-of-the-art results in several downstream tasks, including form understanding (from 70.72 to 79.27), receipt understanding (from 94.02 to 95.24), and document image classification (from 93.07 to 94.42). For more information, refer to the original article.

Thankfully, the model was open sourced and made available in huggingface library. Thanks, Microsoft!

For this tutorial, we will clone the model directly from the huggingface library and fine-tune it on our own dataset. But first, we need to create the training data.

Invoice Annotation

Using the UBIAI text annotation tool, I have annotated around 50 personal invoices. I am interested to extract both the keys and values of the entities; for example in the following text €œDate: 06/12/2021€ we would annotate €œDate€ as DATE_ID and €œ06/12/2021€ as DATE. Extracting both the keys and values will help us correlate the numerical values to their attributes. Here are all the entities that have been annotated:

DATE_ID, DATE, INVOICE_ID, INVOICE_NUMBER,SELLER_ID, SELLER, MONTANT_HT_ID, MONTANT_HT, TVA_ID, TVA, TTC_ID, TTC

Here are a few entity definitions:

MONTANT_HT: Total price pre-tax
TTC: Total price with tax
TVA: Tax amount

Below is an example of an annotated invoice using UBIAI:

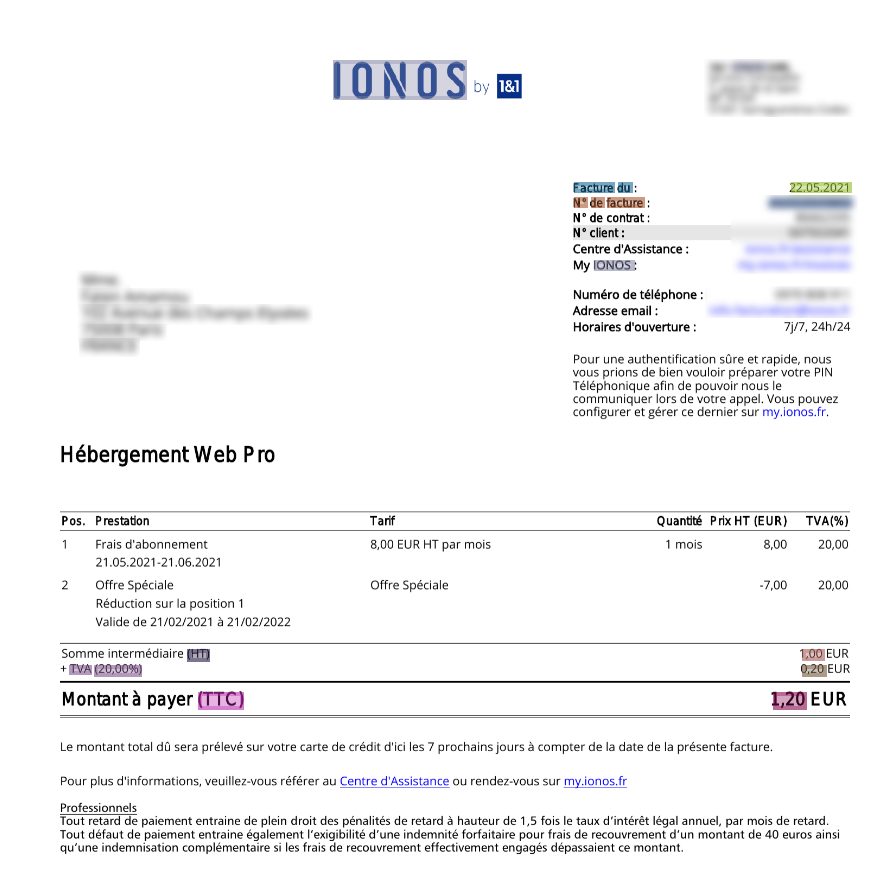

19u59CcYS9C2AW5dzF6iCOQ
                                                             Image by author: Annotated invoice

After annotation, we export the train and test files from UBIAI directly in the correct format without any pre-processing step. The export will include three files for each training and test datasets and one text file containing all the labels named labels.txt:

Train/Test.txt

2018    O
Sous-total O
en O
EUR O
3,20 O
‚¬ O
TVA S-TVA_ID
(0%) O
0,00 ‚¬ S-TVA
Total B-TTC_ID
en I-TTC_ID
EUR E-TTC_ID
3,20 S-TTC
‚¬ O
Services O
soumis O
au O
mécanisme O
d'autoliquidation O
- O

Train/Test_box.txt (contain bounding box for each token):

‚¬       912 457 920 466
Services 80 486 133 495
soumis 136 487 182 495
au 185 488 200 495
mécanisme 204 486 276 495
d'autoliquidation 279 486 381 497
- 383 490 388 492

Train/Test_image.txt (contain bounding box, document size, and name):

‚¬ 912 425 920 434 1653 2339 image1.jpg
TVA 500 441 526 449 1653 2339 image1.jpg
(0%) 529 441 557 451 1653 2339 image1.jpg
0,00 ‚¬ 882 441 920 451 1653 2339 image1.jpg
Total 500 457 531 466 1653 2339 image1.jpg
en 534 459 549 466 1653 2339 image1.jpg
EUR 553 457 578 466 1653 2339 image1.jpg
3,20 882 457 911 467 1653 2339 image1.jpg
‚¬ 912 457 920 466 1653 2339 image1.jpg
Services 80 486 133 495 1653 2339 image1.jpg
soumis 136 487 182 495 1653 2339 image1.jpg
au 185 488 200 495 1653 2339 image1.jpg
mécanisme 204 486 276 495 1653 2339 image1.jpg
d'autoliquidation 279 486 381 497 1653 2339 image1.jpg
- 383 490 388 492 1653 2339 image1.jpg

labels.txt:

B-DATE_ID
B-INVOICE_ID
B-INVOICE_NUMBER
B-MONTANT_HT
B-MONTANT_HT_ID
B-SELLER
B-TTC
B-DATE
B-TTC_ID
B-TVA
B-TVA_ID
E-DATE_ID
E-DATE
E-INVOICE_ID
E-INVOICE_NUMBER
E-MONTANT_HT
E-MONTANT_HT_ID
E-SELLER
E-TTC
E-TTC_ID
E-TVA
E-TVA_ID
I-DATE_ID
I-DATE
I-SELLER
I-INVOICE_ID
I-MONTANT_HT_ID
I-TTC
I-TTC_ID
I-TVA_ID
O
S-DATE_ID
S-DATE
S-INVOICE_ID
S-INVOICE_NUMBER
S-MONTANT_HT_ID
S-MONTANT_HT
S-SELLER
S-TTC
S-TTC_ID
S-TVA
S-TVA_ID

Fine-Tuning LayoutLM Model:

Here, we use google colab with GPU to fine-tune the model. The code below is based on the original layoutLM paper and this tutorial .

First, install the layoutLM package€¦

! rm -r unilm
! git clone -b remove_torch_save https://github.com/NielsRogge/unilm.git
! cd unilm/layoutlm
! pip install unilm/layoutlm

€¦as well as the transformer package from where the model will be downloaded:

! rm -r transformers
! git clone https://github.com/huggingface/transformers.git
! cd transformers
! pip install ./transformers

Next, create a list containing the unique labels from labels.txt:

from torch.nn import CrossEntropyLoss
def get_labels(path):
with open(path, "r") as f:
labels = f.read().splitlines()
if "O" not in labels:
labels = ["O"] + labels
return labels
labels = get_labels("./labels.txt")
num_labels = len(labels)
label_map = {i: label for i, label in enumerate(labels)}
pad_token_label_id = CrossEntropyLoss().ignore_index

Then, create a pytorch dataset and dataloader:

from transformers import LayoutLMTokenizer
from layoutlm.data.funsd import FunsdDataset, InputFeatures
from torch.utils.data import DataLoader, RandomSampler, SequentialSampler
args = {'local_rank': -1,
'overwrite_cache': True,
'data_dir': '/content/data',
'model_name_or_path':'microsoft/layoutlm-base-uncased',
'max_seq_length': 512,
'model_type': 'layoutlm',}
# class to turn the keys of a dict into attributes
class AttrDict(dict):
def __init__(self, *args, **kwargs):
super(AttrDict, self).__init__(*args, **kwargs)
self.__dict__ = self
args = AttrDict(args)
tokenizer = LayoutLMTokenizer.from_pretrained("microsoft/layoutlm-base-uncased")
# the LayoutLM authors already defined a specific FunsdDataset, so we are going to use this here
train_dataset = FunsdDataset(args, tokenizer, labels, pad_token_label_id, mode="train")
train_sampler = RandomSampler(train_dataset)
train_dataloader = DataLoader(train_dataset,
sampler=train_sampler,
batch_size=2)
eval_dataset = FunsdDataset(args, tokenizer, labels, pad_token_label_id, mode="test")
eval_sampler = SequentialSampler(eval_dataset)
eval_dataloader = DataLoader(eval_dataset,
sampler=eval_sampler,
batch_size=2)
batch = next(iter(train_dataloader))
input_ids = batch[0][0]
tokenizer.decode(input_ids)

Load the model from huggingface. This will be fine-tuned on the dataset.

from transformers import LayoutLMForTokenClassification
import torch
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model = LayoutLMForTokenClassification.from_pretrained("microsoft/layoutlm-base-uncased", num_labels=num_labels)
model.to(device)

Finally, start the training:

from transformers import AdamW
from tqdm import tqdm
optimizer = AdamW(model.parameters(), lr=5e-5)
global_step = 0
num_train_epochs = 50
t_total = len(train_dataloader) * num_train_epochs # total number of training steps
#put the model in training mode
model.train()
for epoch in range(num_train_epochs):
for batch in tqdm(train_dataloader, desc="Training"):
input_ids = batch[0].to(device)
bbox = batch[4].to(device)
attention_mask = batch[1].to(device)
token_type_ids = batch[2].to(device)
labels = batch[3].to(device)
# forward pass
outputs = model(input_ids=input_ids, bbox=bbox, attention_mask=attention_mask, token_type_ids=token_type_ids,
labels=labels)
loss = outputs.loss
# print loss every 100 steps
if global_step % 100 == 0:
print(f"Loss after {global_step} steps: {loss.item()}")
# backward pass to get the gradients
loss.backward()
#print("Gradients on classification head:")
#print(model.classifier.weight.grad[6,:].sum())
# update
optimizer.step()
optimizer.zero_grad()
global_step += 1

You should be able to see the training progress and the loss getting updated.

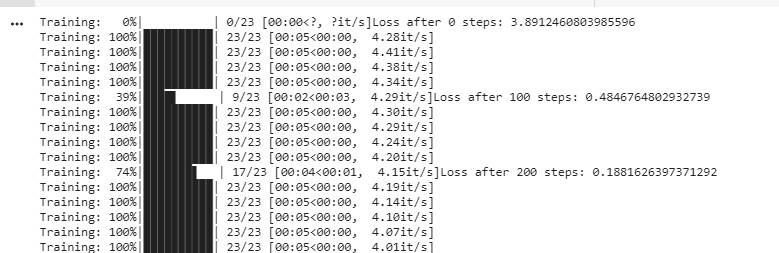

1pnUCTmC4-47C8S2q-FFFpg
                                                 Image by author: Layout LM training in progress

After training, evaluate the model performance with the following function:


import numpy as np
from seqeval.metrics import (
classification_report,
f1_score,
precision_score,
recall_score,
)
eval_loss = 0.0
nb_eval_steps = 0
preds = None
out_label_ids = None
# put model in evaluation mode
model.eval()
for batch in tqdm(eval_dataloader, desc="Evaluating"):
with torch.no_grad():
input_ids = batch[0].to(device)
bbox = batch[4].to(device)
attention_mask = batch[1].to(device)
token_type_ids = batch[2].to(device)
labels = batch[3].to(device)
# forward pass
outputs = model(input_ids=input_ids, bbox=bbox, attention_mask=attention_mask, token_type_ids=token_type_ids,
labels=labels)
# get the loss and logits
tmp_eval_loss = outputs.loss
logits = outputs.logits
eval_loss += tmp_eval_loss.item()
nb_eval_steps += 1
# compute the predictions
if preds is None:
preds = logits.detach().cpu().numpy()
out_label_ids = labels.detach().cpu().numpy()
else:
preds = np.append(preds, logits.detach().cpu().numpy(), axis=0)
out_label_ids = np.append(
out_label_ids, labels.detach().cpu().numpy(), axis=0
)
# compute average evaluation loss
eval_loss = eval_loss / nb_eval_steps
preds = np.argmax(preds, axis=2)
out_label_list = [[] for _ in range(out_label_ids.shape[0])]
preds_list = [[] for _ in range(out_label_ids.shape[0])]
for i in range(out_label_ids.shape[0]):
for j in range(out_label_ids.shape[1]):
if out_label_ids[i, j] != pad_token_label_id:
out_label_list[i].append(label_map[out_label_ids[i][j]])
preds_list[i].append(label_map[preds[i][j]])
results = {
"loss": eval_loss,
"precision": precision_score(out_label_list, preds_list),
"recall": recall_score(out_label_list, preds_list),
"f1": f1_score(out_label_list, preds_list),
}


With only 50 documents, we get the following scores:

1XlkxvCe7nynTLW6PakHtFg
                                         Image by author: Evaluation score after training

With more annotations, we should certainly get higher scores.

Finally, save the model for future prediction:

PATH='./drive/MyDrive/trained_layoutlm/layoutlm_UBIAI.pt'
torch.save(model.state_dict(), PATH)

Inference:

Now comes the fun part, let€™s upload an invoice, OCR it, and extract relevant entities. For this test, we are using an invoice that was not in the training or test dataset. To parse the text from the invoice, we use the open source Tesseract package. Let€™s install the package:

!sudo apt install tesseract-ocr
!pip install pytesseract

Before running predictions, we need to parse the text from the image and pre-process the tokens and bounding boxes into features. To do so, I have created a preprocess python file layoutLM_preprocess.py that will make it easier to preprocess the image:

import sys
sys.path.insert(1, './drive/MyDrive/UBIAI_layoutlm')
from layoutlm_preprocess import *
image_path='./content/invoice_test.jpg'
image, words, boxes, actual_boxes = preprocess(image_path)

Next, load the model and get word predictions with their bounding boxes:

model_path='./drive/MyDrive/trained_layoutlm/layoutlm_UBIAI.pt'
model=model_load(model_path,num_labels)
word_level_predictions, final_boxes=convert_to_features(image, words, boxes, actual_boxes, model)

Finally, display the image with the predicted entities and bounding boxes:

draw = ImageDraw.Draw(image)
font = ImageFont.load_default()
def iob_to_label(label):
if label != 'O':
return label[2:]
else:
return ""
label2color = {'data_id':'green','date':'green','invoice_id':'blue','invoice_number':'blue','montant_ht_id':'black','montant_ht':'black','seller_id':'red','seller':'red', 'ttc_id':'grey','ttc':'grey','':'violet', 'tva_id':'orange','tva':'orange'}
for prediction, box in zip(word_level_predictions, final_boxes):
predicted_label = iob_to_label(label_map[prediction]).lower()
draw.rectangle(box, outline=label2color[predicted_label])
    draw.text((box[0] + 10, box[1] - 10), text=predicted_label, fill=label2color[predicted_label], font=font)

Et voila:

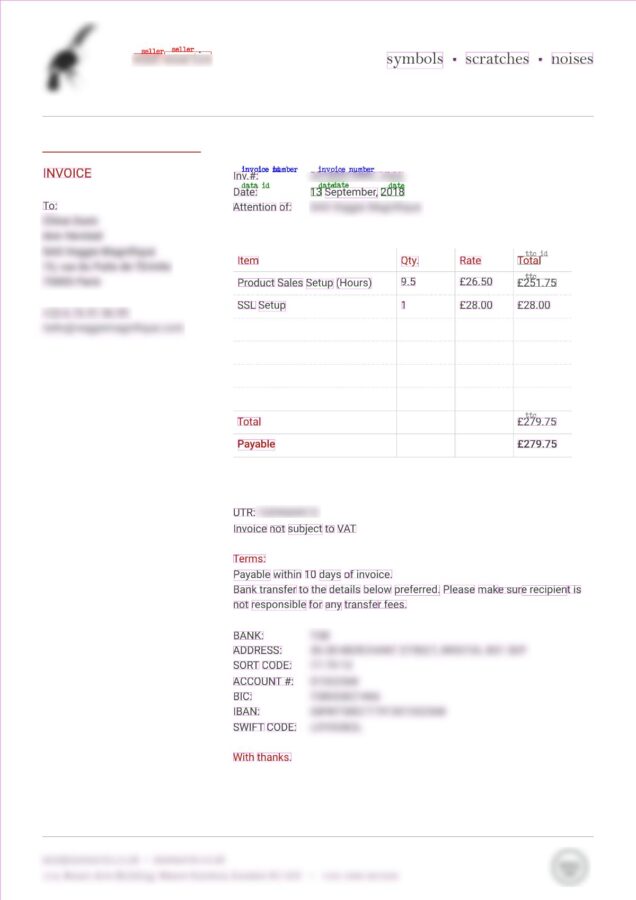

1tVr0lhUHJclI6xUEMg55VA
                                               Image by author: Predictions on a test invoice

While the model made few mistakes such as assigning the TTC label to a purchased item or not identifying some IDs, it was able to extract the seller, invoice number, date, and TTC correctly. The results are impressive and very promising given the low number of annotated documents (only 50)! With more annotated invoices, we will be able to reach higher F scores and more accurate predictions.

Conclusion:

Overall, the results from the LayoutLM model are very promising and demonstrate the usefulness of transformers in analyzing semi-structured text. The model can be fine-tuned on any other semi-structured documents such as driver licences, contracts, government documents, financial documents, etc.

If you have any question, don€™t hesitate to ask below or send us an email at [email protected]

If you liked this article, please like and share!
